Erw pipe making machine can make tube: ms tubes, iron tubes, GI tubes;
production capacity is more than 300-500 tons per month; the speed is 30-120m/min and using the electricity to weld.

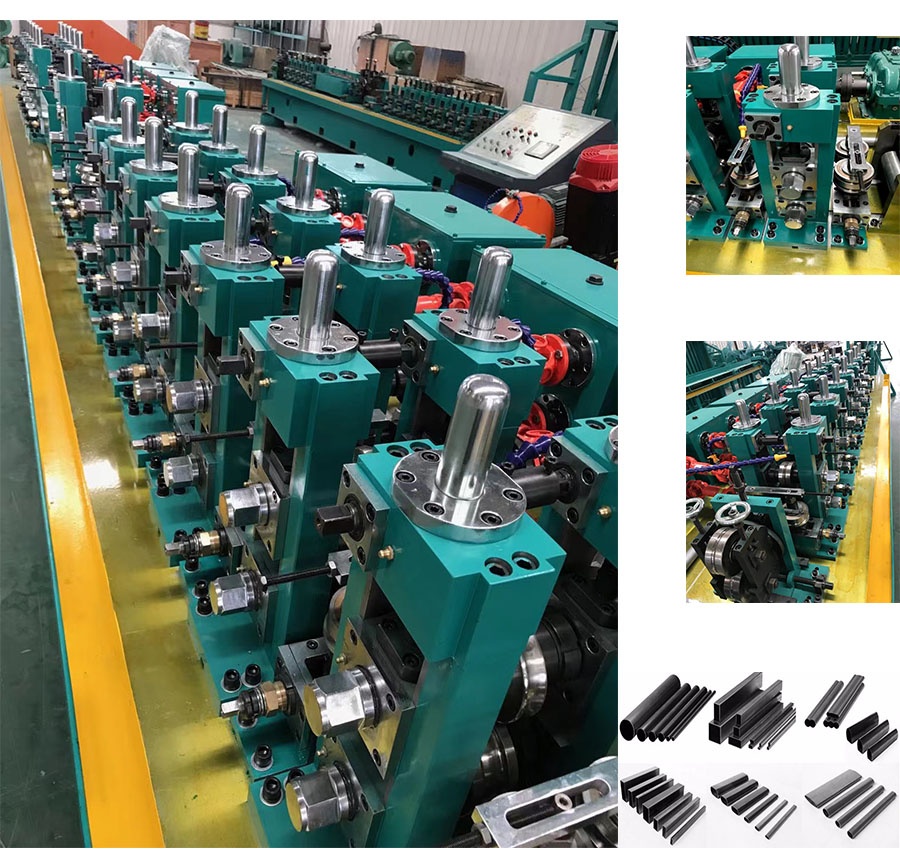

High frequency tube mill structure diagram:
ERW pipe making machine Working Flow:
Raw material (steel strip coil) →uncoiling→shear and butt-welder→material accumulating→passively leveling→forming machine→high frequency welding →remove the burrs outside→cooling →sizing machine→straightening→fixed length cutting →run out table→finished tube
Model |
Shape |
Diameter (mm) |
Thickness(mm) |
Total Power(kw) |
Production Speed(m/min) |
CT16 |
Round |
7-25 |
0.18-1.0 |
145 |
20-120 |
|
Square |
6*6-20*20 |
0.18-0.5 |
|
|
CT20 |
Round |
8-32 |
0.2-1.2 |
150 |
20-120 |
|
Square |
10*10-25*25 |
0.2-0.6 |
|
|
CT25 |
Round |
8-38 |
0.3-1.5 |
160 |
20-100 |
|
Square |
10*10-30*30 |
0.3-0.8 |
|
|
CT28 |
Round |
10-50.8 |
0.4-1.8 |
200 |
20-100 |
|
Square |
10*10-40*40 |
0.4-1.2 |
|
|
CT32 |
Round |
16-63.5 |
0.4-2.5 |
290 |
20-120 |
|
Square |
15*15-50*50 |
0.4-1.8 |
|
|
CT45 |
Round |
16-76 |
0.5-2.5 |
370 |
20-120 |
|
Square |
15*15-60*60 |
0.5-2.0 |
|
|
CT50 |
Round |
19-76 |
0.5-3.25 |
400 |
20-100 |
|
Square |
20*20-60*60 |
0.5-2.5 |
|
|
CT50K95 |
Round |
20-95 |
0.6-3.25 |
400 |
20-100 |
|
Square |
20*20-50*100 |
0.6-2.5 |
|
|
CT60 |
Round |
19-76 |
0.6-3.5 |
400 |
20-90 |
|
Square |
15*15-40*80 |
0.6-2.75 |
|
|
CT60K95 |
Round |
20-95 |
0.6-3.5 |
430 |
20-80 |
|
Square |
20*20-50*100 |
0.6-2.75 |
|
|
CT76 |
Round |
19-76 |
0.6-3.5 |
540 |
20-70 |
|
Square |
15*15-40*80 |
0.6-3.0 |
|
|
CT76K102 |
Round |
22-102 |
0.8-3.5 |
540 |
20-80 |
|
Square |
20*20-50*100 |
0.8-3.0 |
|
|
CT76K114 |
Round |
38-114 |
0.8-3.5 |
550 |
20-90 |
|
Square |
20*20-80*80 |
0.8-3.0 |
|
|
CT89K127 |
Round |
48-127 |
0.8-3.5 |
660 |
20-90 |
|
Square |
40*40-100*100 |
0.8-3.0 |
|
|
CT114K140 |
Round |
60-140 |
0.8-4.0 |
760 |
20-60 |
The Application range of erw pipe making machine are widely used in construction, automobiles, street lamps, furniture, air conditioners, refrigerators, home (clothes hangers, mops), electric vehicles and other vehicles, decorative pipes, threading pipes, oil pipes, shelf pipes and other fields.
high frequency welded tube manufacturing machine can produce below pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe
